BG Parcel Belt Conveyor system for logistics businesses

The BG Parcel Belt Conveyor System is a fast, easy and cost-effective sortation system for handling a wide variety of items from packages to polybags. BEUMER Group’s parcel conveyor belt solution guarantees seamless handling of goods by merging the expertise of cost-effective conveying with reliable operational performance, a very low need for maintenance and minimal power consumption.

a parcel conveyor that is Flexible, reliable and cost-effective

The BG Parcel Belt conveyor seamlessly blends the efficiency of cost-effective parcel and other item conveying with proven operational performance, easy maintenance, and minimal power usage.

Its modular design, which combines standard modules with customisable features like belt width, efficient drives, and adjustable incline, ensures a swift, straightforward and economical handling system for a wide range of items, from parcels to polybags.

For added versatility, the belt conveyor system’s standard modules for drive, middle, transfer, and end sections can be paired with standard support and suspension structures, allowing for floor or ceiling mounting. This modular approach expedites assembly and gives a robust, reliable, and quiet system that requires a very low number of spare parts.

Features

Sturdy, modular, highly flexible design ensuring a very compact layout
Large selection of belt types and widths
Configurable drive types
Incline continuously adjustable to 20°
Manufactured at a Beumer Group factory

The best parcel conveyor belts for every requirement

Featuring the ability to adjust inclines up to 20°, the conveyor belt system accommodates vulcanised belts or belts with mechanical connections. Equipped with anti-slip structures, the belts prevent item slippage on inclined sections, ensuring secure handling and transportation.

Save power while transporting packages

To minimise power consumption, the BG Parcel Belt conveyor system uses low-friction belt positioners, tensioning systems and an optimised drive system – all with intelligent systems control.

Cost-effective, reliable transport for packages, small components and polybags
Low power consumption
Fast, cost-effective installation
Easy, low-cost maintenance
High quality assures safe and quiet operation


Belt widths, 300/700 series:	300, 400, 500, 600, 700 mm
Belt widths, 600/1,200 series:	600, 700, 800, 900, 1,000, 1,100, 1,200 mm
Belt widths, 1,300/1,500 series:	1,300, 1,400, 1,500 mm
Conveying speed:	0-2.5 m/s
Conveyor lengths:	up to 24 m
Slip-on gear motor:	0.75-7.5 kW
Bearing service life:	30,000 h
Height of side flanges:	80, 120, 150, 200, 300 and 400 mm

Your Partner of Choice

Proactive Customer Support for your industry

Our support goes beyond the standard — it’s a partnership built to last. Backed by a worldwide network of regional service centers, we are with you throughout the entire lifecycle of your systems and assets, understanding your unique needs to ensure maximum reliability and efficiency.

We are working 24/7 to be your Partner of Choice.

Learn more

Case Studies

Innovative sortation doubles European capacity for DHL

Six integrated sorters deliver end-to-end sortation

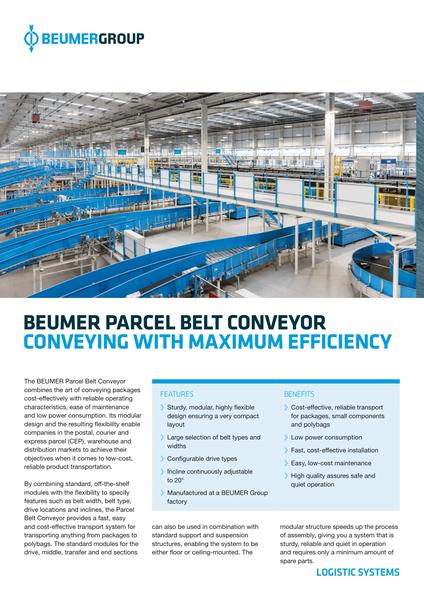

BEUMER Parcel Belt Conveyor
